What is Laser Cutting Tolerance?

Laser cutting tolerance indicates the accuracy and the allowable variation in the laser cutter toward cutting the material. In terms of usability, it is the difference between the size of a cut as envisaged and the size actually obtained. Lack of tolerance led to the grounding and corrupting of input signals that, in turn, influences the quality and functionality of the final product. Therefore, a low tolerance level means there are small variations from the required dimensions of the object.

Reasons for Laser Cutting Tolerance

The tolerance limits in laser cutting, in general, depend on several factors. These factors need to be appreciated to advance precision and attain comparability of results.

1. Material Type and Thickness

The nature and thickness of the material practically define the laser cutting tolerance. Laser energy is absorbed in different ways by different types of material, which damages the cut’s quality and accuracy. For instance, a larger material thickness may call for high power consumption, and time, resulting in deviations. Some of the basic materials afford high tolerance due to their uniformity, such as aluminum and stainless steel, but those such as wood or plastics can pose some problems.

2. Laser Power and Speed

The tolerance levels depend highly on laser power and cutting speed within the manufacturing processes. Heat provides better edges and higher contrasts without a depressing effect on materials Likewise, the cutting speed has to be fine-tuned; if it is set too high, the cuts are not clean; if set too low, there is too much melt under the tool, which influences the tolerance.

3. Focus and Alignment

Focusing and aligning the laser beam is crucial for high accuracy. Any deviation causes the blade to cut inaccurately and has low tolerance levels. Frequent adjustments of the laser cutting machine ensure that the laser beam is well-focused on the material to be cut.

4. Software and Design

The tolerance is impacted by the software used to design and control the cutting process of the whole program. Still, in Laser Cutting, complex CAD computer-aided design software gives one control over the path of the laser and the dimensions to be achieved on the material. It means any mistake made when working with the design file can easily culminate in an error in the resultant product.

5. Environmental Conditions

Other parameters, such as temperature and humidity, also appear to have some influence on tolerance during laser cutting.

Significance of Laser Cutting Tolerance

Achieving the right tolerance levels in laser cutting is crucial for several reasons:

1. Quality Assurance

High tolerance limits make it possible to obtain the necessary quality products. Tolerance standards in structural elements in sectors such as aerospace or automobiles are paramount to smooth functioning and component’s reliability.

2. Cost Efficiency

Poor tolerance levels may also result in more material being used than necessary, or incorrect parts being made. The concept of tolerance can be used to minimize wasted material, increase the yield ratio and, therefore, increase cost productivity.

3. Product Fit and Functionality

In assembly processes such as those applied in construction, the various components have to fit each other tightly. Fluctuation intolerance results in variation in form and size that affects the assembled product’s final output, integrity and sturdiness.

4. Customer Satisfaction

It is even more important that the obtained and required values should meet certain tolerance levels to satisfy the customer. Brand regulatory trust is created by consistent tolerance levels, which in turn affects manufacturers’ reputations.

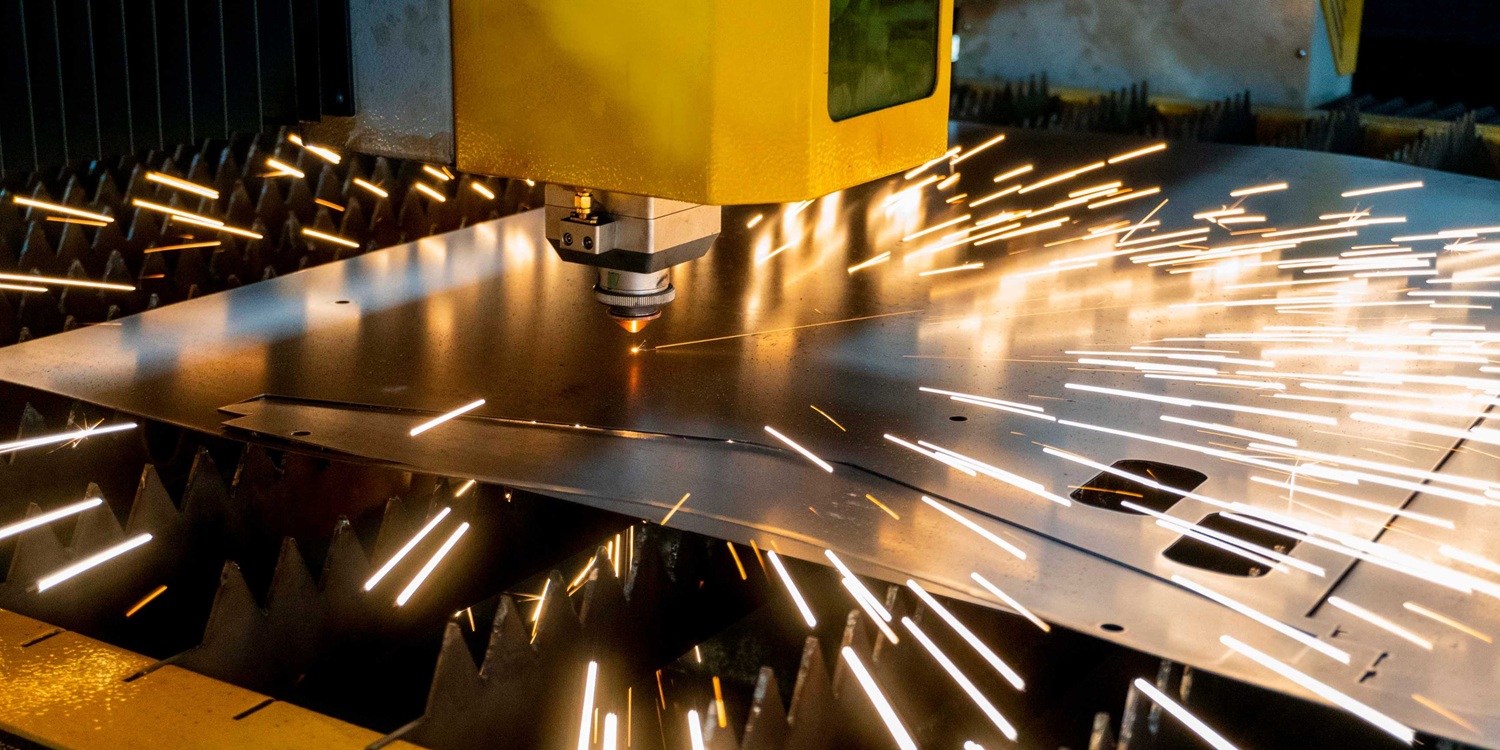

Laser Cutting Tolerance Improvement

Managing acceptable tolerance levels requires both equipment, technique, and process control.

Here are some strategies to enhance laser cutting precision:

1. Regular Machine Maintenance

Machines should be maintained frequently to ensure the high performance of laser cutting machines. To do this, wipe lenses, align the laser beam, and make sure the mechanical components are in good shape. Equipment which is well maintained is less likely to generate deviations in the size of cuts to be made.

2. Preparation of the Materials

Selecting the material that best fits the job is important. It should be flat and in its best condition to avoid all hindrances during the cutting process. Proper preparation of the materials ensures that the results are consistently obtained.

3. Optimal Parameter Settings

These factors can indicate the right power and focus of the laser and the speed of the laser, which will provide the best results in a procedure. A series of tests should be run on the material and thickness of the size, and the parameter, along with the tolerance, should be set to the required criteria. Automatic systems could also control these parameters to improve consistency.

4. Software

The high-level CAD software will enable the cutter to exercise great control over the cutting process. Look at the design data incorporated into the design files and make sure it is correct.

5. Environmental Control

Stability of the working conditions might also help reduce temperature and humidity fluctuation, which impacts the cutting process. To achieve repeatable performance and maintain tolerance levels, it is advised that investments be made in climate control systems.

6. Skilled Operators and Training

A well-skilled operator enables the organization to achieve its productivity goals and objectives through training.

The tolerance level also depends a great deal on the knowledge that a skilled operator has regarding laser cutting technology. Proper training and frequent updating of systems help them deal with different materials and circumstances.

Today, laser cutting is widely adopted in the manufacturing, designing, and fabrication industries because of its efficiency and flexibility. Another fruitful question that usually arises is whether it is possible to cut metals with laser cutters. In this comprehensive guide, learn about the capacity of a laser cutter to cut through metal to different types of metals, types of laser cutters and possible limitations facing the process.

Laser Cutting Understanding

The process operates by conning a laser beam on a specific spot, and since the heat is concentrated, it melts, burns or vaporizes the material. To cut material, a stream of gas, which may be nitrogen or oxygen, is used to eject the molten material. Because of efficiency and accuracy, and they are able to cut complex shapes.

Lasers for Metal Cutting.

CO2 Lasers

Carbon dioxide or CO2 lasers are widely used in laser cutting among all types of lasers. The generation of the laser beam is accomplished by these lasers using a gaseous medium, carbon dioxide being the most popular. The CO2 laser is well suited for cutting and engraving non-metal materials such as wood, acrylic and textiles but is not so efficient in cutting metals. This is because the metal absorbs less of a CO2 laser, which makes it a slow process of cutting and processing compared to using a fibre laser.

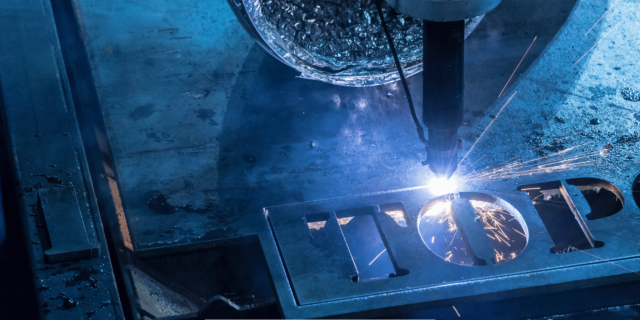

Fiber Lasers

Fibre lasers are commonly used to cut metals because of their high performance as compared to other laser cutting technologies. These lasers employ a fibre optic cable whose core is subsequently doped with rare earth compounds, namely ytterbium. Fibre lasers have a higher absorption factor in metal and are hence used in the cutting of steel and other ferrite metals. It provides opportunities for higher cutting speed, higher accuracy, and lower operations costs, in contrast to the CO2 lasers.

Nd: YAG Lasers

Another laser-cutting metal option is the Nd:YAG (Neodymium-doped Yttrium Aluminum Garnet) lasers. They are multifunctional and work for cutting and welding, and they are strong for marking. Although they can cut a range of materials, including stainless steel and aluminum, fibre lasers are normally more efficient. However, they are ideal when used to cut non-ferrous materials and other complex shapes and designs.

Metals That can be Laser Cut

Steel

Laser cutting’s most extensively utilized metal is steel, especially carbon steel. Fibre lasers are ideal for this procedure because of the high absorption coefficients. Compared to other cutting techniques, laser cutting of steel offers clean edges and is hence preferred by the automobile, aircraft, and construction industries.

Stainless Steel

Cutting stainless steel with a laser requires more tweaks to the settings and the coolant necessary to prevent oxidation. Stainless steel, however, has some drawbacks inherent to its reflective surface, but fibre lasers can solve these problems due to their high efficiency in the absorption of such material.

Aluminium

Another conductor that is easily cut with the laser cutter is aluminium. It is non-ferrous and has rather good thermal conductivity, and therefore, it rapidly removes heat from the material. All this can make the laser out of focus and end up being less accurate. However, under laser and efficient material cooling conditions, aluminium can be cut with extremely high accuracy.

Copper and Brass

Both copper and brass are difficult materials for laser cutting due to their qualities as heat conductors and reflectors. It could be possible, however, to use a high level of laser cutter and specific parameters. These metals usually work using lesser proficiency lasers or water jet-cutting methods for improved outcomes.

Titanium

It has high strength and low density, which explains why it is used in aerospace machines and medical equipment. Cutting titanium by laser is difficult because of its high melting temperature and tendency for oxidation during cutting. Small laser machines with micro-stepping and laser cooling options allow for getting clean cuts.

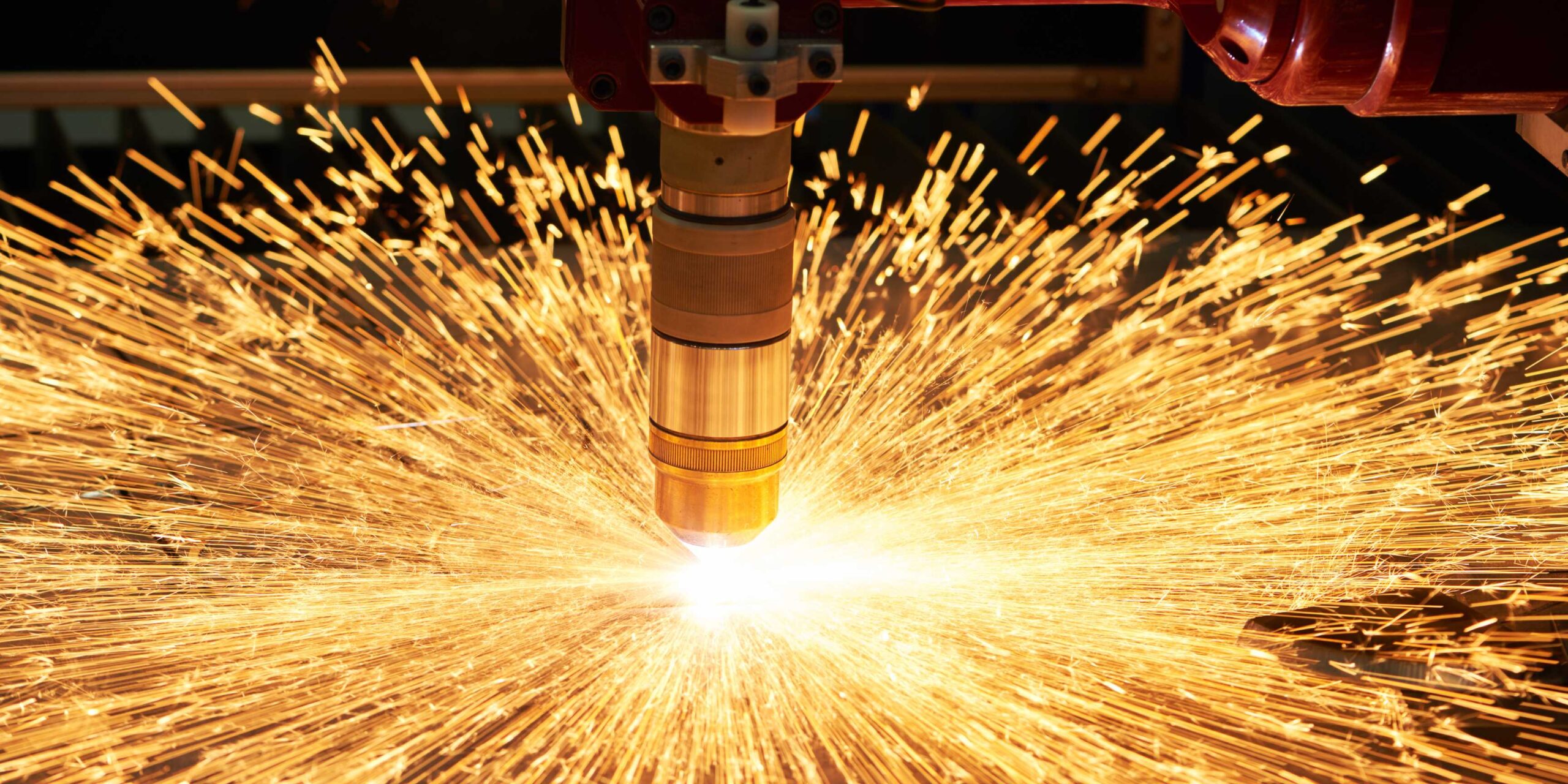

Benefits involved in Laser cutting metal

Laser cutting offers several advantages over traditional metal cutting methods:

– Precision: Laser cutting can produce some very accurate cuts, accuracy or repeatability being usually within .005mm.

– Complexity: The advantage of using a laser cutter is that it can cut out very detailed shapes (and even combine many of them to build complex forms).

– Speed: Laser cutting is also quicker, particularly when using a fibre laser for materials such as metal steel.

– Clean Edges: It creates smooth edges that rarely need a lot of enhancement work to be done.

– Versatility: Laser cutting technologies work effectively on different types of metals.

Some Drawbacks of Using Laser Cutting Metal

While laser cutting metal has numerous benefits, there are limitations to consider:

– Thickness: Laser cutting machines, however, have a limitation on how thick the metal being used is. Thick metal needs more power lasers and time to cut than thin ones.

– Reflectivity: Highly reflective metals, such as copper and aluminum tend to reflect off the surface, which in turn damages the cutting system.

– Oxidation: Some materials, such as stainless steel, are prone to oxidation during laser cutting unless controlled by gas.

– Cost: It has been established that fibre laser-based high-power laser cutting systems are expensive to acquire and use.

Laser cutting has been taken to the next level, giving high levels of accuracy, speed and flexibility in metal cutting. While CO2 lasers are less effective for cutting metals, fibre lasers and Nd: YAG lasers are effective for all steels, stainless steel, aluminum and other difficult materials such as titanium.

For designers, engineers, and even business owners, finding out how laser cutting works and whether these devices can be effectively applied to the metal cutting process will be useful in making certain decisions and ensuring excellent results.

Overview of Laser Systems

Lasers is the acronym for Light Amplification by Stimulated Emission of Radiation, which emits light through the process of optical saturation. Their uses include even cutting and welding of metals in surgeries, optical communications and entertainment. Classifying lasers by their ability to generate a laser beam output in watts (W) counts among the major factors in assessing performance and cost.

Determining Factors of Laser Prices

Type of Laser

The type of laser and its cost per Watt is critical to know how much it can cost.

There are various types of lasers, each suited for specific applications:

– Solid-State Lasers: These use a solid medium like a crystal or a glass. It is mostly cheaper, but it may be even less effective in some cases compared to others.

– Gas Lasers: These lasers are efficient and accurate; they use gas as the gain medium. However, they are more costly than other methods of disposal.

– Semiconductor Lasers: These lasers are frequently used in electronics and telecommunication applications and are less costly in applications requiring low to medium power output but could be relatively expensive at high powers.

– Fiber Lasers: High co-efficiency, and power make fibre lasers widely used in industrial fields. They are cheap to use and do not compromise performance.

Power Output

Laser cost is often proportional to the power that the laser itself generates. In most cases, it is observed that with an increase in wattage, the price of the laser also increases. Because additional components are necessary to develop and maintain high power production.

Application-Specific Requirements

It is also important to consider that the intended application of the laser can play a role in laser costs. Lasers used in industrial applications such as cutting and welding need more power and accuracy, thereby increasing the price. Yet, consumer lasers for home or office use usually have less power and are cheaper.

The cost of lasers is also influenced by the materials used in the manufacturing of the lasers. Superior quality of the optical components, fine mechanical work, and incorporation of new-age electronics boost the costs.

Brand and Technology

It is worth noting that brands with a reputation for delivering quality and durability products will always have their products priced higher. Also, there are lasers that use modern technologies, or when built with higher performance characteristics, they are likely to cost more.

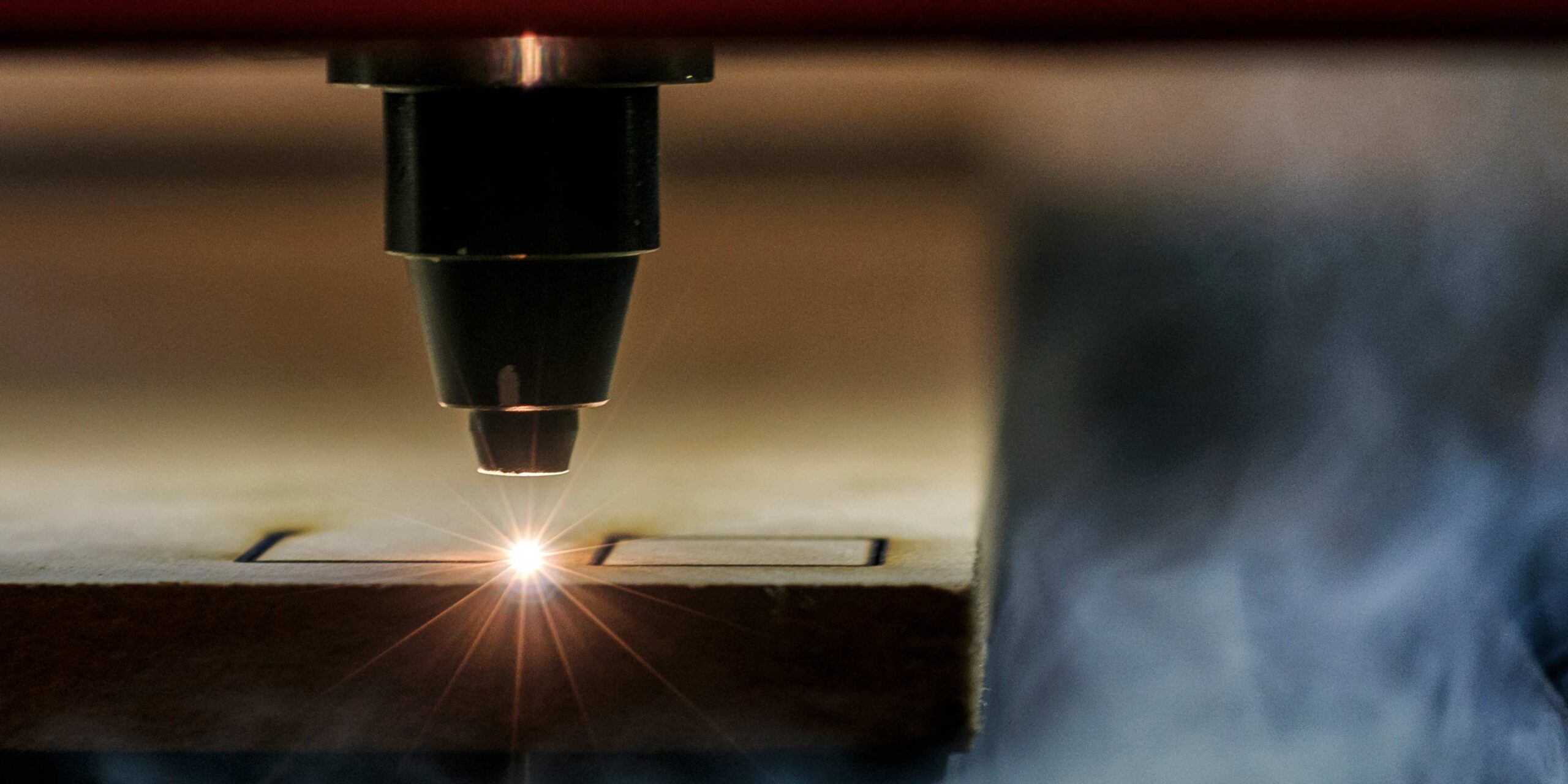

Laser Watt Cost Breakdown

Low-Power Lasers

The cost per Watts is very low in certain low-power usages, like laser pointers and barcode scanners. These lasers are generally within a few dollars to tens of dollars per Watt. These above models are relatively cheaper because they are not as complex as the complicated models, use fewer materials and are more affordable to manufacture.

Medium-Power Lasers

For example, telecommunications, medical devices, and consumer electronics lasers often employ medium-power lasers. These lasers can cost from 10$ to 100$ per watts. The increased cost is connected to the need for higher accuracy, stability, and, sometimes, certain wavelength characteristics.

High-Power Lasers

Industrial applications of lasers, which include laser cutting, welding, and engraving, use high-power lasers, which can be costly. It costs anything from one hundred to several hundred dollars per watts. The main reason is that the required power sources, cooling systems, and most components have to be strong to address the power density.

Ultra-High-Power Lasers

Laser outputs above several kilowatts are employed in a few applications, including the military and research. These lasers can be very expensive; the price per Watt of these lasers is in the thousands. The high levels of power achieved owing to the high complexity and precision and the technology used in their manufacture are reflected in the high prices.

Costs over the last years, their trend and future predictions

Development of Technology

The lasers are gradually cheaper owing to technological improvements. New material, fabrication, and design technologies are rendering lasers more affordable and effective. The development of fibre laser technology has seen costs come down even as the performance improves.

Economies of Scale

An evaluation of the market forces depicts that demand for lasers in different operations has triggered economies of scale. Manufacturers also receive incremental cost benefits from the production of units, therefore making the lasers accessible to the market.

Customisation and flexibility

Lasers can be optimized for certain uses, and this is becoming a trend. It also enables the manufacturers to reduce the cost per Watt, and one can design specific elements and parts to fit particular needs.

The cost can greatly depend upon the type and wattage of the laser, the tasks it’s used for, the cost of production, and the brand. Despite high-power lasers still being costly, progressive technological improvements and elevated production volumes are slowly reducing their cost. Since the demand for laser technology increases each year, more and more people will be able to afford lasers and integrate them into all fields.

Aluminum is one of the materials to which laser welding is applied, and taking into account that it can be utilized for joining different materials. Several properties of aluminum alloy are desirable, such as light weight, high strength-to-weight ratio, and good thermal and electrical conductivity. Over the years, there has been a developing interest in laser welding of aluminum because of these benefits: precision, high energy density, and minimal heat input to other parts of the material.

This article will describe the possibility of welding aluminum using this technique, the different types of lasers useful for welding aluminum, the benefits and constraints of laser welding aluminum, and some uses of laser welding aluminum in various industries.

Types of Lasers Used for Aluminum Welding

Laser Welding of aluminium alloys is a crucial process in the manufacturing of automotive vehicles, wireless communication equipment and countless applications involving lightweight and high strength structure materials.

Various classifications of lasers used for al-welding are possible, and they are all characterized by their advantages and disadvantages.

Some of the most commonly used lasers for this purpose include:

1. Fiber Lasers: This type of laser has recently found its way into aluminium welding applications as a result of its high efficiency and low costs of operation. The source has a high beam quality and can deliver high power in a localized area, which is important for welding thin aluminium foils. Also, as pointed out earlier, fibre lasers have high duty cycles, and the beam quality is very good for long distances; hence it is suitable for automation.

2. CO2 Lasers: CO2 lasers have long been used in welding aluminium. They have low cost and can produce high power levels, which can be useful when welding thicker aluminium sections. But, as output beam quality, they are not as good as fibre lasers, are more susceptible to degradation, need more maintenance, and have a lower duty cycle.

3. Solid-State Lasers: These lasers have lower power than fibre lasers but have greater beam quality. They are intended for welding thin aluminium sheets and where increased accuracy is needed.

Pros of Laser Welding Aluminum

Laser welding reveals the following advantages over other types of welding regarding aluminium.

Some of these advantages include:

1. High Precision: Automatic welding is less sensitive to weld pool movements and produces narrow welds with low distortion levels. This is especially important where thin aluminium foils are used because any heat introduced to the foils will lead to warping or the formation of other undesirable features.

2. Minimal Heat Input: Traditional welding procedures differ from laser welding since the latter has a small heat influence on the surrounding material. This minimizes thermal injury and makes it possible to join delicate components without causing heat-related failure.

3. High Speed: High speed of laser welding, reduces the labour cost. Furthermore, the laser beam contains high energy density, which ensures deep penetration welding suitable for welding thick aluminum sections.

4. Automation: Laser welding can be easily incorporated into an automated system; this could help increase productivity, reducing errors ands.

Laser welding Aluminum: Key Issues

However, as earlier mentioned, there are some drawbacks of laser welding aluminum, although the fact that this process has many benefits justifies its use.

Some of these challenges include:

1. Reflectivity: Aluminium has the issue of laser reflectivity since the material itself has reflective properties. This can cause a loss of energy, weld penetration, and efficiency decrease, as well as weld defects, such as keyholing or lack of fusion. The problem is solved in some laser welding systems by employing pulsed welding, which encompasses the modulation of the laser power density to enhance energy penetration.

2. Surface Oxides: Aluminum is easily oxidized to form a coherent oxide layer on the surface, which is nearly impossible to remove using the laser beam. To improve this latency, the aluminum surface must be prepared so that the surface is free of contaminants, which will interfere with the welding process and shield the weld area from surrounding atmosphere during welding.

3. Residual Stress: Cracking or warping can be caused by residual stress left in the welded material by laser welding. To reduce this problem, the welding process is to be tightly regulated; and in some instances, the post-welding heat treatment is likely going to be necessary.

Laser Welding and its Uses in Aluminum Industry and its Detail applications

Laser welding in aluminum involves the following: Some common applications include:

1. Aerospace Industry: Laser welding is used to join different parts including fuselage sections, wing panels and landing gear since aerospace most of its components from aluminum. Laser’s welding provides the accuracy and the required strength for such applications and at the same time reducing the weight of the component.

2. Automotive Industry: It is used widely in auto mobile industry currently since it is light in weight but stronger than steel. Most automotive companies today employ laser welding to connect aluminum parts including the skin, space frames, chassis and suspension systems, the benefits being it is very rigid, light and does not rust.

3. Solar Panel Manufacturing: Because aluminium is superb at transmitting heat and electricity, it is favoured in the production of solar panels. Laser welding is employed for the joining of the aluminum frame to the solar cells which produce a robust and assiduous yet lightweight construction that can endure the vagaries of outdoor settings.

4. Medical Devices: Owing to its biochemical compatibility and its ability to resist corrosion aluminum is commonly used in development of medical devices. Laser welding is employed to weld aluminum parts in the medical products including surgical tools, implants, and dentures to have a severe, flawless, and germ-free bond.

Laser cutting is gaining acceptance in many fields as a way of cutting metals, plastics, and other composite materials. The advantages obtained by applying the laser in cutting include increased accuracy of the cuts, short time for preparation, minimal loss of material, and the potential to create intricate cuts in curved patterns. Of all the materials, one material that can be laser cut is aluminum. However, can a diode laser cut aluminum successfully?

As most metal cutting applications involve aluminum, this article will focus on understanding the capacity of diode lasers to provide cuts to aluminum and the effects and constraints of this capacity.

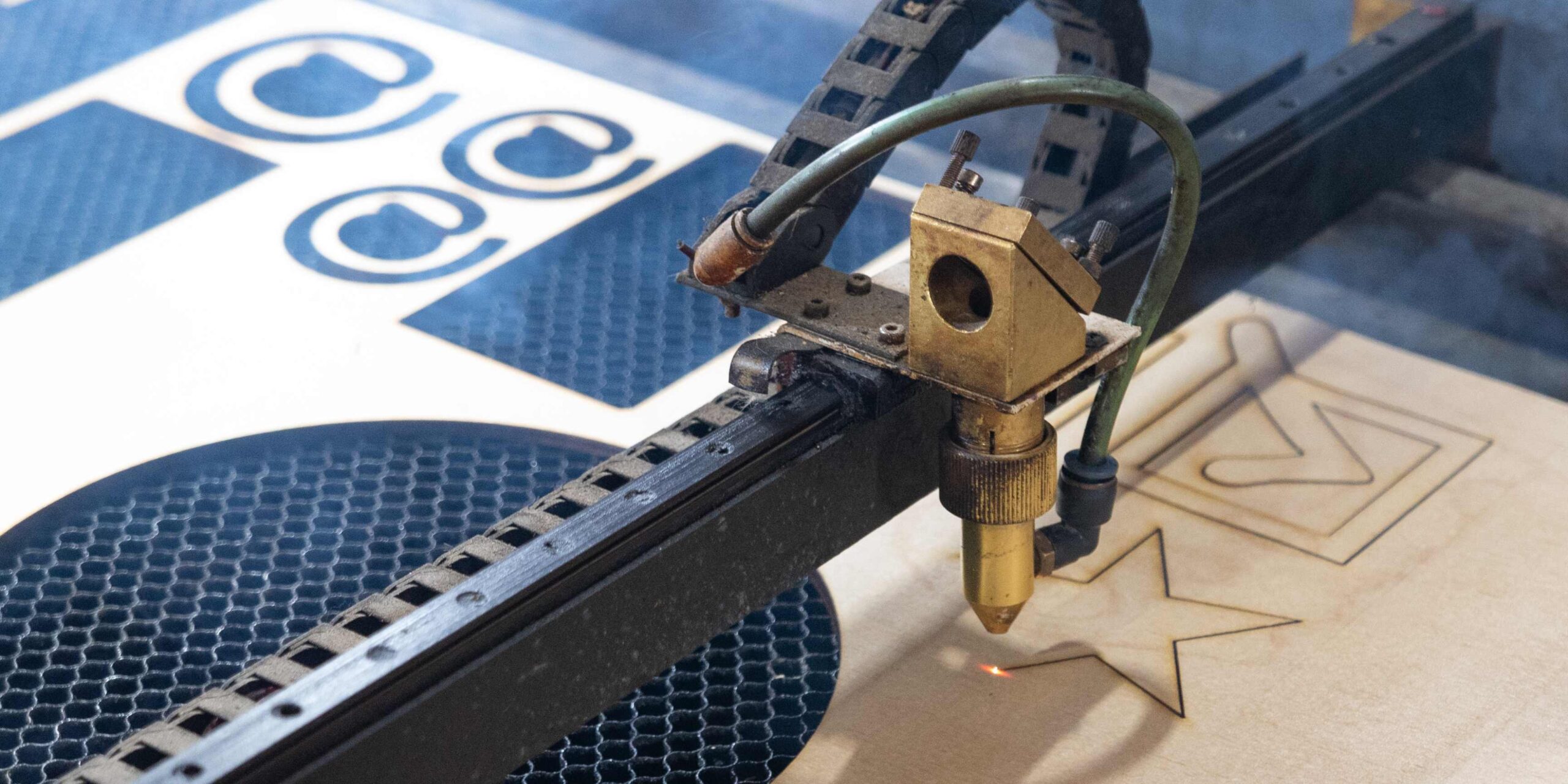

Diode Lasers: An Overview

Small semiconductor devices that radiate intense monochromatic and highly collimated light beams, diode learners, or laser diodes. Because of their relatively small size, low cost, and excellent efficiency, they are employed in numerous applications. The PN junction is a diode laser principle in which light generation is achieved by passing an electric current through which electrical and optical fields are combined.

Diode lasers can be classified into two main types: Fabry–Perot and Distributed Feedback (DFB) lasers. The most familiar type of Fabry-Perot laser employs multiple reflections and produces a wide-spectrum light beam. DFB lasers, on the other hand, are much more complex than Fabry–Perot lasers and have distributed grating, hence exhibiting light emission in a single mode and narrow spectrum, respectively.

Diode lasers can emit light at different wavelengths depending on the end user’s requirements. The most frequently used wavelength is 808nm, which is suitable for cutting and welding carbon steel and stainless steel. However, other wavelengths are also available in appropriate uses, namely 940 nm, 1064 nm, and 1320 nm.

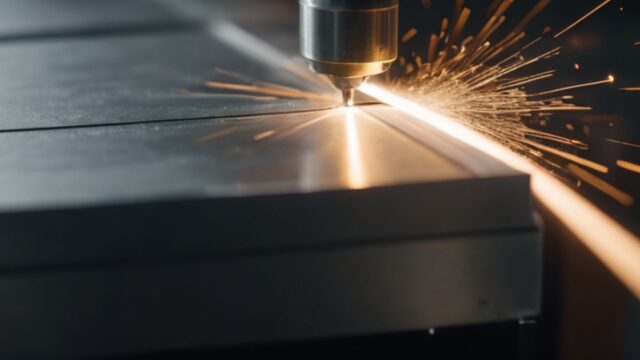

Slicing of Aluminum through Diode Laser

The low density, rust-proof characteristics, and high thermal and electrical conductivity of aluminum make it an ideal material that could be widely used in various sectors today. Nevertheless, this metal is rigid to work with because of its high melting point and ability to reflect heat and/or light; to elaborate, mechanical cutting and plasma cutting are challenging to perform on aluminum.

Today, laser cutting is widely used to cut aluminum as a better option to other methods. The operation of the laser on the aluminum surface lets the power density be high enough to melt or evaporate the material necessary to make a definite and clean cut. The parameters pertaining to laser cutting are laser wavelength, laser power, laser spot size, laser speed, and the nature and thickness of the aluminum.

Diode lasers are not popular for the cutting of aluminum and this is because; though the diode lasers can be used for cutting of aluminum, it can only be done if the correct parameters have been applied. For clean and smooth cutting of aluminum material, a diode laser should have high power-rated output, most preferably above 1kW, and concomitant laser wavelength of the diode laser should be easily absorbed by the metal material. Other laser parameters should also be adjusted to the spot size to equal the cutting speed and edge quality.

Application of Diode Lasers to Cut Aluminum: Strengths and Weaknesses

Diode laser which is cheaper is more suitable for small and medium enterprises than CO2 or fiber lasers. Furthermore, diode lasers are characterized as having a long useful life and low level of maintenance, which makes them cost-effective devices.

However, some drawbacks can be observed when using diode lasers for cutting aluminum. Cutting process is likely to occur at higher rates of power and at slower rates at times compared to other lasers. Consequently, production time and power utilization may be increased.

Further, it is discovered that diode lasers are likely to give a marginally inferior cut quality when used on aluminum, particularly on thick material or complex shapes. Another disadvantage of diode lasers may be a higher size of the heat affected zone compared to conventional lasers which can extend its adverse effects on the material surrounding the cut.

Although diode lasers can cut aluminum, one should not use them in the situations where accuracy is paramount, or where the aluminum is particularly thick. Other similar types of laser that can work better are CO2 or fiber laser in relation to the rate of cutting, sharpness of the edge and minimized heat affected zone.

Characteristics of the cutting process and factors influencing it

Several factors can influence the quality and efficiency of diode laser cutting in aluminum, including:

1. Laser wavelength and absorption: The optical absorption coefficient of laser light by aluminum is not very high, especially in the near-infrared range of wavelengths (800 – 1064 nm) standard to diode lasers. Higher power losses and lower cutting rates can follow. To enhance the absorption some changes in the laser parameters or a surface coating may be applied as a part of the preprocessing stage.

2. Laser power and focus: The material cutting rate and edge quality all directly depend of the chosen laser power and focus. By use of higher power levels and finer spot sizes, the cutting speeds are always higher, and the edge quality is well enhanced. Nonetheless, the most suitable laser parameters with regard to thickness and quality of aluminum could be different.

3. Cutting speed: There is a strong correlation between the cutting speed and quality of cut and the heat affected zone. Increasing cutting speeds makes the cuts smoother, and also reduces the amount of heat that causes degrading of the edge, but it reduces the cutting performance in equal proportion. Proper control of the cutting speed suited to a particular job is absolutely critical in order to provide the highest possible value of the ratio between the speed and accuracy.

4. Assist gas: The cutting operation is made better by removing molten metallic and chips from the area being cut by using an assist gas like nitrogen or oxygen. Cutting speed and edge finish will vary, depending on the type of assist gas metered and the pressure used.

Laser cutting is one of the production processes that is widely used in industries for cutting matrices such as aluminum. They are somewhat difficult to laser cut because aluminum is both highly reflective and has a comparatively high melting point. In this article, we are going to unveil the various considerations before arriving at the best wattage for laser cutting of aluminum and also, the wattage to choose for the various results.

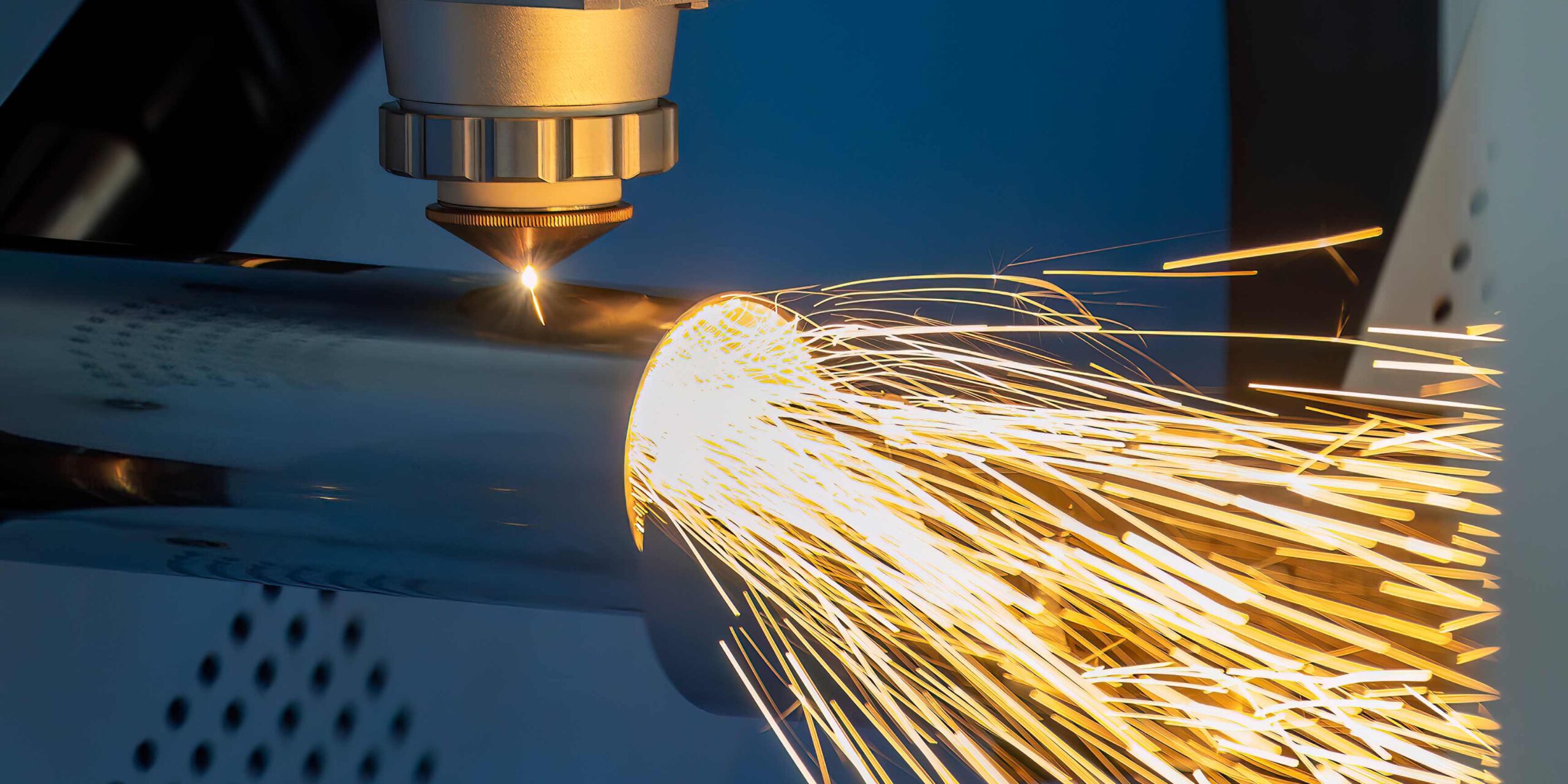

Learning More About the Difficulties Involved in Cutting Aluminum

It is a soluble material well suited to be used in numerous industries like Aerospace, Automotive, Construction, etc. When laser cutting aluminum several problems that must be taken into consideration when deciding on the correct power of the laser.

Reflective Surface

Aluminum in particular is highly reflective, thus when the laser strikes the surface, a great part of it is reflected back and little of the energy is actually absorbed by the material. On the other hand, this makes it less easy for the laser to melt and vaporize the aluminum, or (in general) the technology of cutting is poor or requires more laser power.

High Melting Point

One issue with working with the material aluminum for example is that it has a higher melting point than plastics so it cannot be cut with a typical laser. Second of all, aluminum, in general, is characterized by higher thermal conductivity, and therefore heat is immediately transferred far from the cutting zone, which makes the cutting even more difficult.

Criteria that Determine the Laser Power

Before the procedure aluminium ought to be evaluated and therefore the precise wattage of a laser ought to be chosen reckoning on the thickness of aluminium, speed, and quality of the cut.

Material Thickness

Thicker aluminum materials mind demands more laser power to offer a clean edge with no burr formed on the material’s surface. In general, as with thickness generally, more energy is needed to melt the material and vaporize it.

Cutting Speed

The desired cutting speed in the project to be done will also determine how much wattage the laser used will have. If greater cutting rate is needed, it might be essential to use a stronger laser in order to preserve cut quality.

Cut Quality

Edge finish and cut tolerance will also have a bearing on the power output of the laser; other characteristics. More power causes a better shave, and thus a cleaner cut than low power may cause a rough edge or even more dross.

Suggested Laser Wattage for Cutting Aluminium

These factors may be used in forming guidelines for general laser wattages used to cut aluminum.

Thin Aluminum

In case of thin aluminum materials which are less than 1mm thickness, a fiber laser with power of between 500 – 1000 watts is adequate in delivering a good cut. These lasers are precise and fast, therefore ideal for thin aluminum sections.

Medium-Thick Aluminum

For materials of mid thickness in aluminium, that is, thicknesses ranging between 1mm and 3mm, a fiber laser with power of between 1000W and 2000W is most suitable. This extra power of laser necessary to melt material rapidly, to remove the thin layer of the material and achieve the high quality of edge.

Thick Aluminum

For thick aluminum materials their thickness should be more than 3mm in which case high power laser cutter is required to make clean cuts and this could be with power from 2000w-3000w and above. These lasers can produce the amount of energy and the narrow focus necessary to sever through thick material in a good manner.

Additional Considerations

Apart from the laser power there are other parameter that can affect aluminum while cutting including the assist gas, focal length, and laser beam quality.

Assist Gas

As you continue cutting, the debris and dross from the previously cut area can dilute with the kerf, which can result in poor edge quality and material discoloration, hence by using an assist gas, such as nitrogen or oxygen, you get to increase the cutting efficiency, as well as help to vacuum the debris and dross from the cutting area.

Focal Length

The focal distance of the laser cutting head was optimized by varying and determining the appropriate focal distance for the different aluminum materials and their thickness. For a sharper beam and better cutting operation, a shorter focal length will be required for thicker materials.

Beam Quality

The quality of the laser beam used is essential while cutting aluminum since the use of a low quality beam reduces the efficiency of the cut made. In cutting aluminium, the quality of the laser beam used in the system has to be the best so that the proper cut is achieved.

The steel part protected from corrosion by zinc is known as galvanized steel. This way, the zinc covering protects the steel by acting as a barrier to oxygen and water. Thus, it can be pointed out that galvanized steel is appropriate for use in open air and when corrosion is an issue.

However, the zinc coating poses some complications when welding galvanized steel, as noted below. While welding over the painted surface, the steel gets hot, and zinc vaporizes and comes out in thick white smoke, which includes zinc oxide dust. This fume is destructive health of the welders. Additionally, zinc can become a problem for weld quality unless some action is taken to mitigate it beforehand.

Hazards of Welding Galvanized Steel

Health Hazards

When the galvanized steel is being welded, zinc is apparent as zinc oxides enter a fume state. During welding, this fume appears as intense white smoke and has a solid-like consistency. Respacing of copper and zinc oxide fumes and particulate can result in metal fume fever or zinc shakes.

Metal fume fever causes flu-like symptoms, including:

– Fever, chills, cough
– Fatigue, weakness
– Nausea, vomiting
– Chest pain, metallic taste

Repeated breathing of the Zinc oxide fumes may also cause more severe diseases like bronchitis, pneumonia, and other respiratory diseases. The zinc oxide particulate formed when welding galvanized steel is hazardous as the particles can be quickly drawn into the lungs.

Weld Quality Issues

Other than the health risks, welding over galvanized steel also affects the weld quality if zinc is not well handled.

Issues that may arise include:

– Porosity –The holes in the weld are formed due to the trapped gas and Zinc vapor bubbles. This reduces strength.
– Cracking – the zinc found in the weld is incompatible with weld fusion and metal flow.
– Weak welds – contaminants decrease the strength of the joining area. Welds may fail under stress.
– Zinc embrittlement is a condition whereby if zinc penetrates the weld area, it tends to make steel much more brittle.

These quality issues are attributed to zinc penetration into the weld pool and disturbance of the welding process. Flaws mean that to some extent cracking and porosity result in the formation of bad areas, and reduction of toughness leads to loss of elasticity.

Galvanized Steel Welding Preparation

While galvanized steel introduces health and quality risks during welding, there are some techniques for dealing with the zinc coating before welding:

Grind the Zinc Coating Off

If you have an angle grinder or can even buy a particular grinding wheel, it would be pretty easy to grind through the zinc coating along the weld area. This should go at least 1.5-2 inches forward of this point where weld will be done. Reduce the material to shiny metal or steel.

If there are some particles of zinc flakes remained on and around the ground weld area, clean it with a stainless-steel wire wheel brush. This in turn assists in minimizing the chances of getting zinc contamination of the weld.

Utilize Zinc Removing Chemistries

That is why there are particular chemical solutions for the galvanisation, or removing the zinc layer before welding galvanized steel. Almost all contain phosphoric acid, which may be diluted or used in a gel that adheres to verticals.

These chemicals dissolve the zinc coating so as to generate a water-soluble phosphate compound. You clear this with a wipe or rinse, then you get the steel exposed. It is essential to comprehend these zinc removers work along the recommendations provided on the packaging of the products.

Nevertheless, some types of galvanized steel, particularly the coupons, continue to release zinc fumes during welding after applying these removal techniques. It is essential to ensure you have a fume extractor nearby the weld zone to be ready to collect noxious smoke.

Use Let it Cool and Brush Off Slag techniques

When liquid zinc is applied to the occurring galvanized coating, some of it boils off and may take iron particles from the steel with it. The zinc/iron alloy on the steel surface and forms flaky slag.

Remember, if welding galvanized steel, it is advisable that the weld is left to cool and then is wire brushed. It helps clear any slag, if there would have been any accumulation near the weld joint. In case it remains on the weld joint, slag lowers corrosion resistance of the weld joint.

Application of Low Hydrogen fitting material

Utilizing low hydrogen type filler material for welding is highly preferred due to several reasons advertised ahead.

The suitable filler material should also be selected because the material might absorb significant moisture during welding. Two types of electrodes, namely cellulose electrodes and rutile flux core wires, are readily permeable to moisture. When welding over galvanized steel, this will create weld porosity and welding cracks.

Can Welding Galvanized Steel Be Done Safely?

However, welding galvanized steel introduces some of these risks, but it is possible in many situations. However, to use galvanized steel is possible only with certain precautions than standard steel.

In welding proper ventilation along with the use of a respirator also reduces uptake of zinc oxide fumes as they are given off. Last but not least, it is essential to modify technique and employ low-hydrogen filler metals as a response to moisture challenges.

However, if proper preparation of the joints, adequate ventilation and type of electrodes are employed welding of galvanized steel can be difficult and there are many challenges. But there is health risks occasioned by smoke produced from zinc oxide and it may therefore not be advisable to weld galvanized parts by yourself without taking professional help.

Laser cutting is quickly gaining popularity as an efficient and precise method used to make cuts across the material. Many industries use aluminum because it is light, strong, and corrosion-resistant. Can lasers cut aluminum? In this article, the reader will get a detailed and clear understanding of cutting aluminum using a laser.

How Lasers Cut Materials

A laser – A concentrated beam of light power

Lasers direct a very high-density, slim stream of light energy to a specific area. This concentrated energy puts the heat intensively and rapidly on any target material, making it melt and vaporize. During the scanning process, the laser beam also maintains a cutting process through ongoing melting and vaporization of the material.

Computer numerical control for accuracy

Today, laser cutting machines are controlled by computer numerical control (CNC) technology to prevent the head of the laser. This enables making immaculate and accurate cuts to even hard-to-shape mass through the material. The thickness, speed, and beam power are variable to establish the proper cutting mechanism for the various forms of material.

Conditions Involving the Process of Cutting Aluminum with Lasers

Material Thickness

Less thick aluminum can be cut with relative speed. The thickness of the aluminum influences the laser cutting in terms of possibility and speed. Some users cut much thinner sheets that are slimmer than ¼ inch, and they need laser power to make the cuts. Thicker blocks require high-power lasers, low cutting speeds, and possibly several passes to complete the cut.

Alloy Composition

The combination of high iron or copper content spikes up the troubles. The cut material melts when subjected to the lasers. It took more laser energy for high iron and copper-containing aluminum alloys to cut because they have a higher boiling point than an alloy with a lower iron and copper content. Pure aluminum grades are more easily vaporized and cut through with lasers than are the alloyed varieties.

Desired Cut Quality

It also means that higher quality cannot simultaneously be associated with lower speed. The inclination of the cut aluminum should ensure that a fine finish of the edges is produced without the laser being rugged. One simply has to reduce the speed at which one is cutting and also fine tune the power and focal distance to get a perfect laser cut edge. The fast-cutting aluminum leads to creation of rough edge.

Cutting Capabilities

It can get you very detailed, very intricate, tiny cuts. In brief, the most significant benefit of laser cutting is making fine cutting edges on the surface of aluminum with precise cuts. It cuts simple figures, combined shapes and contours with great precision and ease, small and complex holes, and slits are simple for a correctly set up laser cutter. The cuts display high edge quality when implemented in an optimal manner.

Limitations

Difficulties arise when the material is a reflective surface, e.g. its responses are given in reverse. An aluminum material has a glossy and reflective characteristic that bounces part of the laser power without cutting the material properly. This reflective nature implies that to energize the metal more power is required as compared to other metals. In addition, if aluminum is not prepared correctly, it turns into oxide when heated during the laser cutting process.

It takes high power to bend a thick aluminum. Aluminum thin sheets can be slit but thick blocks above 1 inch in thick are difficult for most industrial lasers. High powered lasers of few kW or even thousands of watts can gradually cut thicker aluminum blocks. Aluminium has an immense potential for heat dissipation and as the thickness grows it chases the heat away from the cut area.

Summary

• Lasers soften and evaporate in order to saw through aluminum.
• Through Computer control, it becomes easy to describe brutal, accurate cuts.
• Can cut tissue thin sheets, thick blocks have to use special high power lasers.
• The surface oxidation as well as reflectivity of the material influences the cutting.

When adjusted for optimal cutting speed and appropriate laser power, lasers in cutting the foils of aluminum all the way up to a few inches thick are feasible. For cutting aluminum, it is essential to use laser, as the method has an excellent level of precision and complexity to cutting patterns that cannot be achieved through other means. Laser cutting made at high precision shows new ways to produce various products through aluminum.

Acrylic is also known as plexiglass or PMMA, a plastic widely used in many fields because of its transparency, weather ability, impact strength, and lightweight. Fiber laser is undeniably a powerful cutting tool that has been ideal for many applications and industries, and as more and more people begin to use acrylic in their manufacturing or crafting projects, a common question arises is whether the fiber laser could efficiently cut acrylic.

What is a Fiber Laser?

A fiber laser is a laser that utilizes optical fibers that are doped with rare earth elements to act as the lasing material to generate the beam of laser light.

Some key advantages of fiber lasers include:

– Good beam quality and good focusability for cutting, welding, and drilling applications

– It has the feasibility to transmit the beam over long distances with minor losses.

– Compared to other types of high-power lasers, this laser is relatively small in size.

– The pump light to laser beam conversion efficiency is very high on the pump side.

– Maintenance-free operation

Fiber lasers can be CW (continuous wave) or pulsed. They may come in powers ranging from several watts to tens of kilowatts. Their characteristics make them ideal for processing plastic materials such as acrylic.

Using a Fiber Laser to Cut Acrylic

Yes, it is possible and feasible to cut both acrylic sheets and parts using a fiber laser. The laser beam is capable of melting and vaporizing the acrylic, which is blown out of the kerf by the assist gas that leaves behind a smooth surface at the edge.

Pros of using fiber laser on acrylic:

There are several benefits to using a fiber laser for cutting acrylic:

There was no evidence of tool wearing or breaking parts during the completion of the cutting operation. It is different from conventional cutting tools such as the saw and the router bit in that it does not come into contact with the cut material. This prevents any wear-off or the possibility of tool damage, regardless of the number of pieces produced.

Fast and Precise Cuts

The cutting process of a fiber laser is faster and more precise because it has a concentrated beam that is computer-controlled, as well as a tight tolerance capacity. Cuts can be made at a rapid pace, even with shapes that may be pretty intricate.

Clean and Polished Edges

The laser melting and vaporization process ensures that the edges are smooth, shiny and polished, thus avoiding further processing. This allows the acrylic to have a very professional look right after being cut by the laser cutter.

No Mechanical Stress

Mechanical cutting applies pressure on the acrylic surface which may lead to chipping and cracking. Laser cutting does not use any physical force to cut through the edges since it melts them, reducing stress damage.

Conditions for Cutting Acrylic with a Fiber Laser

To achieve optimal cutting results on acrylic, the following fiber laser settings are recommended:

– Power: 50-120 watts

– Speed: 30-60 inches/minute

– Frequency: 5000-20000 Hz

– Assist Gas: Either compressed air or nitrogen at approximately 45 psi

Higher power typically enhances the maximum cutting thickness and speed capability. Thicker acrylic may require several passes to pass through the cutting tool and machine. Optimization of the assist gas pressure in a proper manner to match the laser power and speed will give good edges.

Acrylic Thickness Capabilities

One-hundred-watt fiber laser is capable of cutting acrylic material up to ¼ inch thickness in a single pass. It can make up to 1⁄2 inch in a single pass; however, several passes are made to achieve that thickness. Lasers with power up to a few kilowatts can cut up to 1-inch-thick acrylic, with a cutting table providing downdraft air removal of melting/burning edges.

Laser-cutting acrylic can be tricky, so here are a few tips to help you get the best results.

Follow these tips when using a fiber laser to cut acrylic:

– Introduce test cuts to acceptable tune factors before total production.

– Utilise sufficient assist gas pressure to propel the melt out of the cut.

– Clean edges with solvent to remove soot, if necessary.

– Do not cut acrylic at low temperatures, otherwise, it might crack easily.

– It may be wise to anneal the acrylic after cutting to remove stress.

When set appropriately and adhering to proper techniques in cutting acrylic, clean and accurate cuts can be made on this material.

Can Other Laser Types Cut Acrylic?

Indeed, fiber lasers are not the only laser type that can cut acrylic. CO2 lasers and Nd:YAG lasers, which also have crystals to produce visible green light, are suitable for cutting acrylics.

However, fiber lasers have benefits in beam quality, accuracy, efficiency, and service life in comparison with those other types of laser. This makes fiber lasers ideal for applications where precision and quality of the cut are paramount in acrylic material. Their capacity to convey beam through versatile fiber optic cables makes it possible to position the laser separately from the cutting system.

So to sum it up, a fiber laser is a perfect tool for cutting even thick acrylic sheet and custom parts with high quality edges and precision. After adjusting the settings and cutting parameters, fiber lasers can effectively perform acrylic marking, engraving, and cutting.

Introduction

Metal fabrication can be defined as the process of building structures from metals and from various kinds of raw metal materials. This is a complicated procedure used in multiple industries to manufacture end products, goods like auto parts, and structures like bridges and buildings, among others. Some of the expected standard metal fabrication processes and tools used mainly by the fabricators during this process include the following. In this article, the reader will be informed about six of the most popular metal fabrication processes.

Cutting

Even the most basic guide on how to use metals will not fail to include Cutting as one of the most basic yet essential processes. This may include the use of saws, shears, plasma cutters, water jets, lasers, and other tools to cut raw metal sheets and plates into the desired shapes and sizes.

Standard cutting tools include:

– Mechanical Saws: Chop saws, bandsaws and hacksaws are primarily used in cutting straight or curved edges on the material under consideration.

– Shears: Alligator shears, plate shears, ironworkers can cut straight through thick metal.

– Plasma Cutters: They are used in cutting metals during the process while at the same time giving a smooth finish on the edges.

– Waterjets: High pressure water jet and abrasives should be used for clean cuts without heat effects and it is recommended to apply it.

– Lasers: Provide accurately matched metal components and thin metal products for applications where high precision is needed.

Bending

Another vital metal forming process is bending where force is applied to curve or angle the metal.

Some ways metal is bent include:

– Press Brakes: Use punch/die male and female punch/die tools to perform accurate bends and folds.

– Rotary Benders: Twist cylindrical shaped parts to make helical coils and spirals.

– Rollers: Bend metal sheets through sets of rolls to create arches and cones.

– Slip Rolls: They are employed in bending round/tubular sections by gradually revolving metal around three rollers.

Joining

Joining techniques permanently fuse separate pieces of metal using processes like:

– Welding/Soldering: Welds metals with localized heat from oxyfuel or electric arc processes.

– Riveting: Defined by the use of metal or polymer rivet fasteners that are inserted through holes in order to fasten.

– Adhesives: There are some varieties of glue/epoxy which are designed to provide a firm hold on metal.

– Mechanical Fasteners: Bolts, screws and clips are the mechanical fasteners that can fix metal parts in a temporary manner.

Forming

With the application of pressure, bending alters the form of a metal substance through a process called forming without necessarily eradicating any substance.

This includes techniques like:

– Stamping: Uses large dies to force fit and shape blank metal sheets into the required parts for use in production.

– Forging: It is a process that employs localized heating and hammering or pressing to forge the metal.

– Rolling: Presses metal between two rollers and reduces its thickness by putting the metal through a number of pairs of rolls.

– Extrusion: Forces metal through a die opening to produce pieces of fixed cross-sectional areas.

Machining

Finishing or polishing of metallic components and parts through the use of various machines is essential in enhancing the shape and acquiring the right size of fabricated metal parts.

Milling, turning, drilling, and grinding are standard machining processes that use:

– Lathes: Turn parts to be faced, bored, knurled, or grooved against cutting tools.

– Milling Machines: Feed materials against a rotating cutter to slot, chamfer, gear-cut workpieces.

– Drill Presses: Employ rotating bits to drill holes and apertures in metals.

– Grinders: Use abrasives to polish and remove sharp edges and burrs on the surface of a machined part.

Finishing

Lastly, finishing processes add attractive protective coatings like paint, powder coatings, plating, anodizing, and more to fabricated metal parts using methods such as:

– Painting: Covers the surface with liquid paints that solidify/elize to provide color and protection from corrosion.

– Powder Coating: Like painting, but in this case, a colored powder is sprayed and then baked in an oven.

– Electroplating: Immerse the articles in the plating tanks and apply electric current to form layers of metals.

– Anodizing: It employs electrolysis to deposit an oxide layer on metals, such as aluminum, to enhance its toughness.

Conclusion

Concisely, it can be concluded that cutting, bending, joining, forming, machining, and finishing are six of the most important and most frequently utilized techniques for fabricating metal parts. Like other manufacturing processes, it is a skill that takes both training and practice to be able to fully and efficiently use the tools involved in these processes, but it is essential knowledge for metal fabricators. It is based on understanding these basic techniques that professional can bend metal into anything of their desire.
